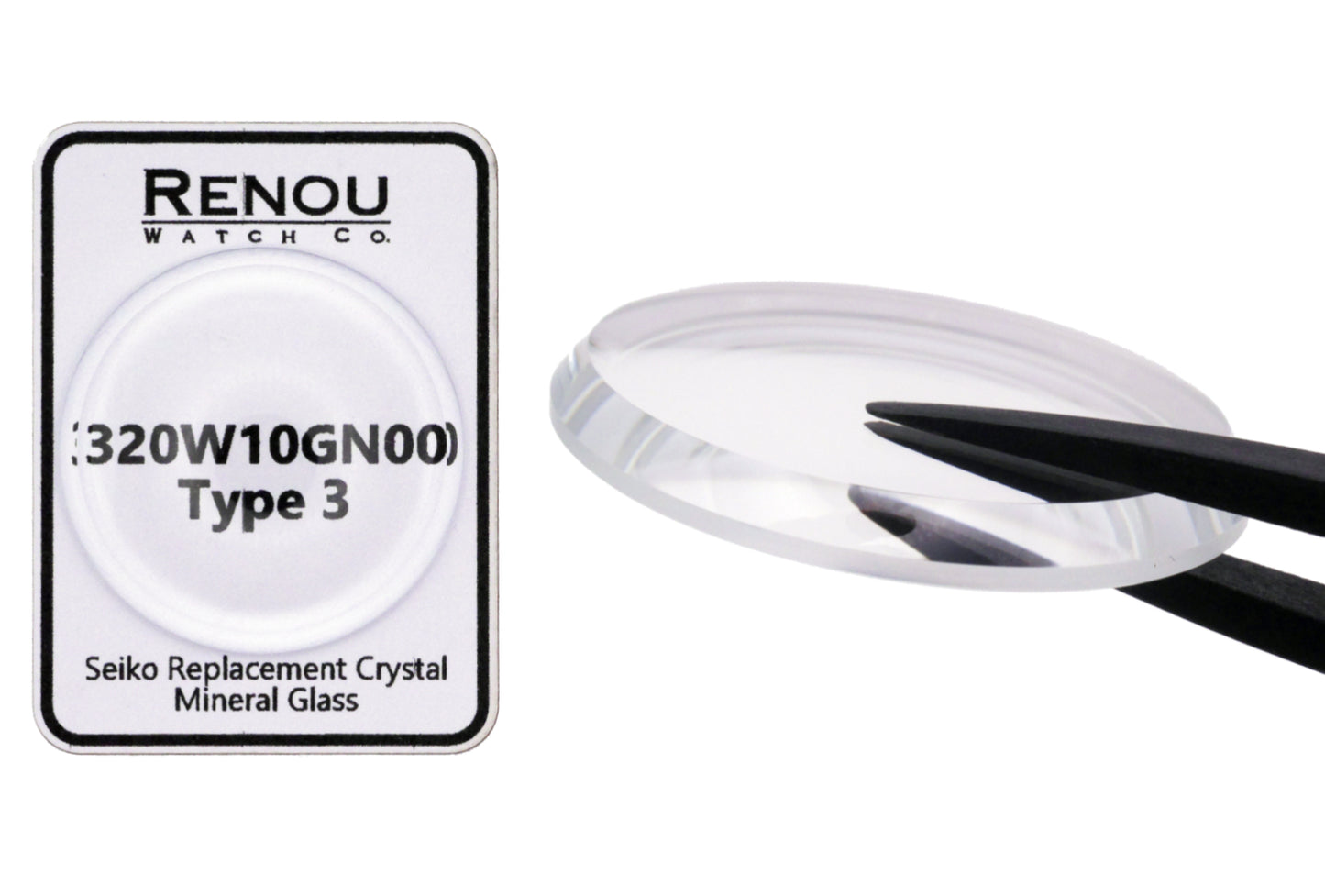

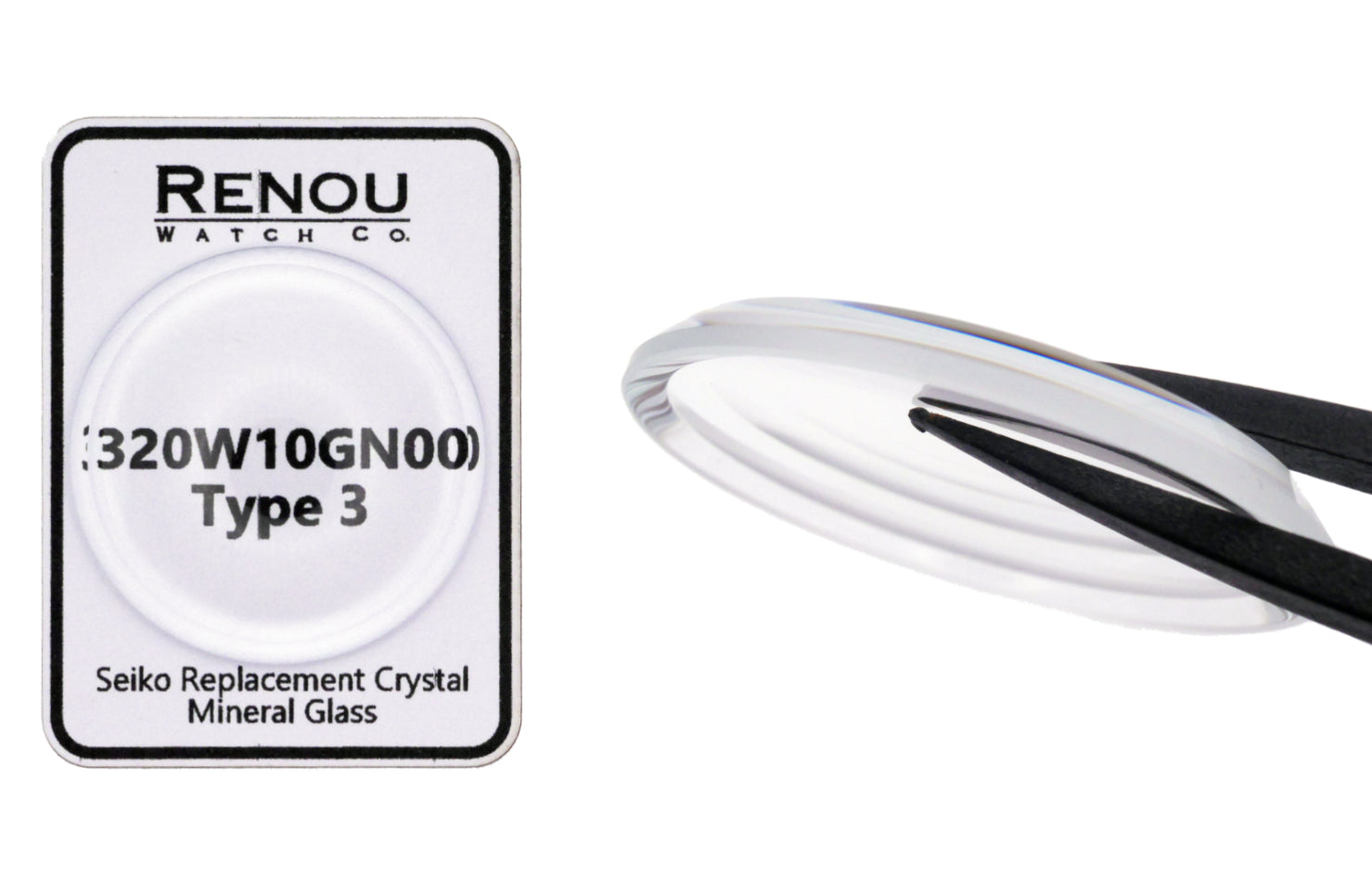

Seiko 320W10GN00 Type 3 Crystal – Replacement for 6105, 6106 & 6119 Diver's Models

This is a Seiko reproduction crystal (not New Old Stock), designed as a newly manufactured replacement for Seiko crystal part number 320W10GN00.

During the 60s and 70s, Seiko used four different variations of the 320W10GN00 crystal in their 6105 models. These variations were:

• Type 1: High edge height, offset to the bezel, flat top with an inner dome.
• Type 2: High edge height, offset to the bezel, domed top and inner surfaces.
• Type 3: Medium edge height, offset to the bezel, domed top and inner surfaces.
• Type 4: Low edge height, offset to the bezel, domed top and inner surfaces.

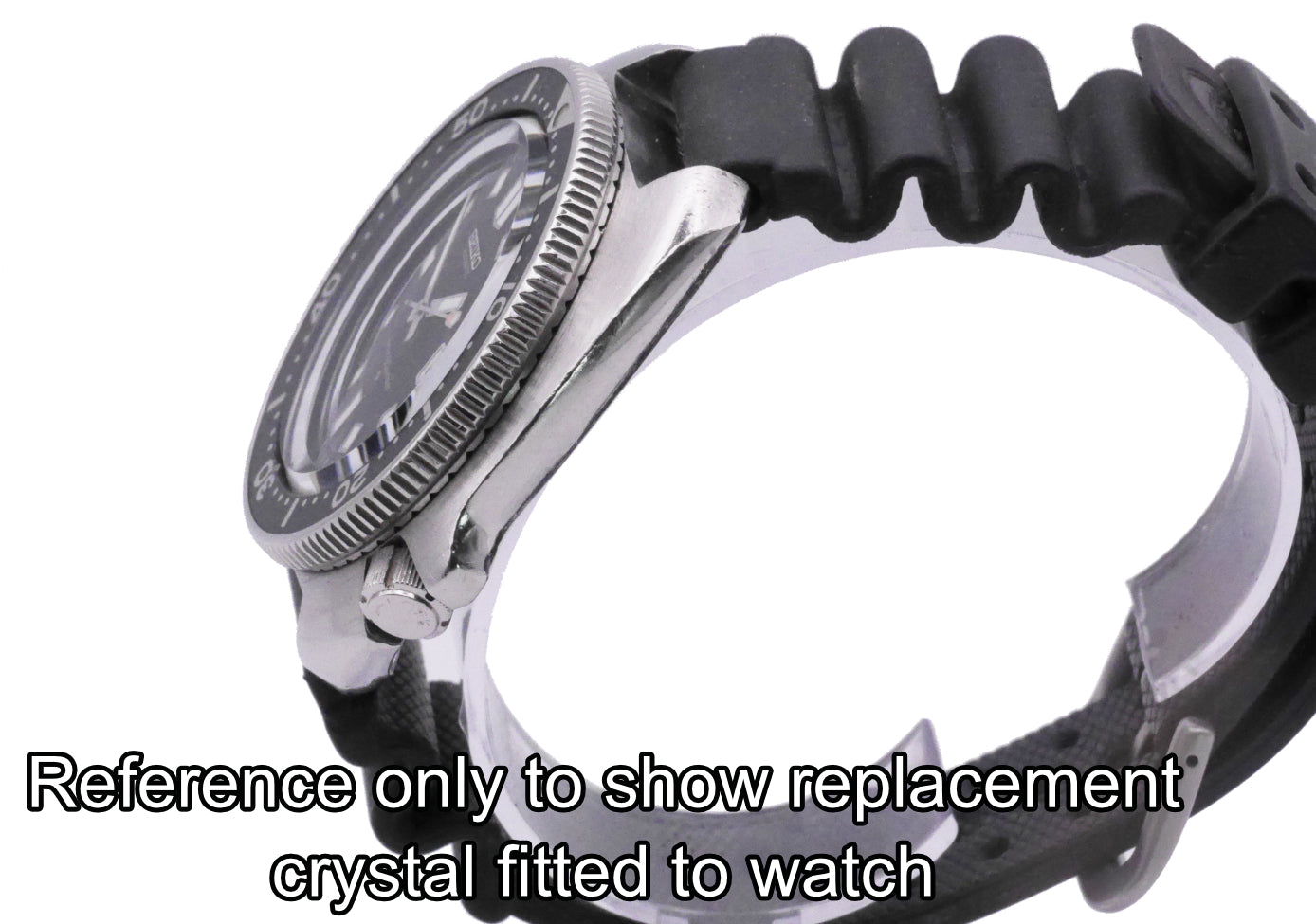

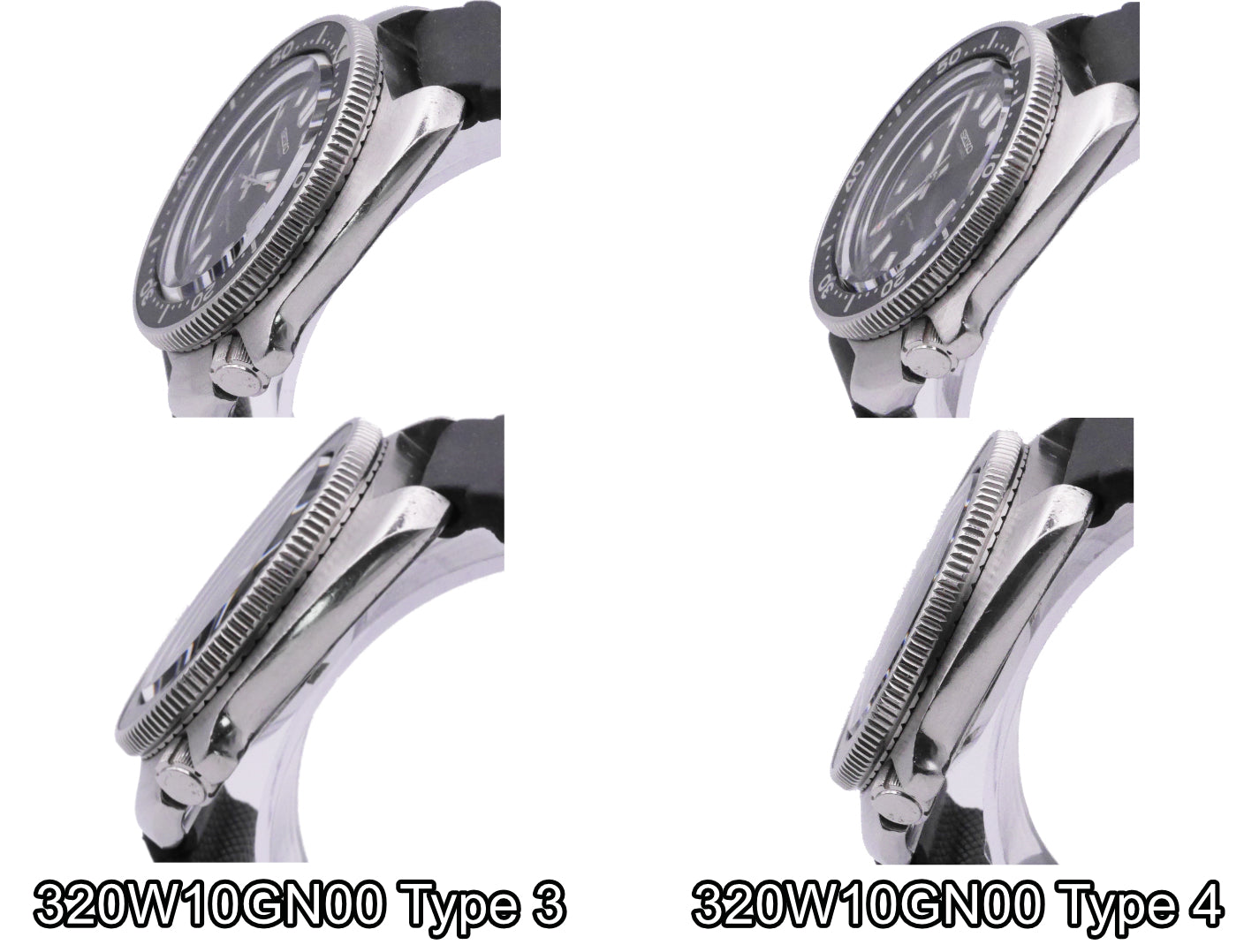

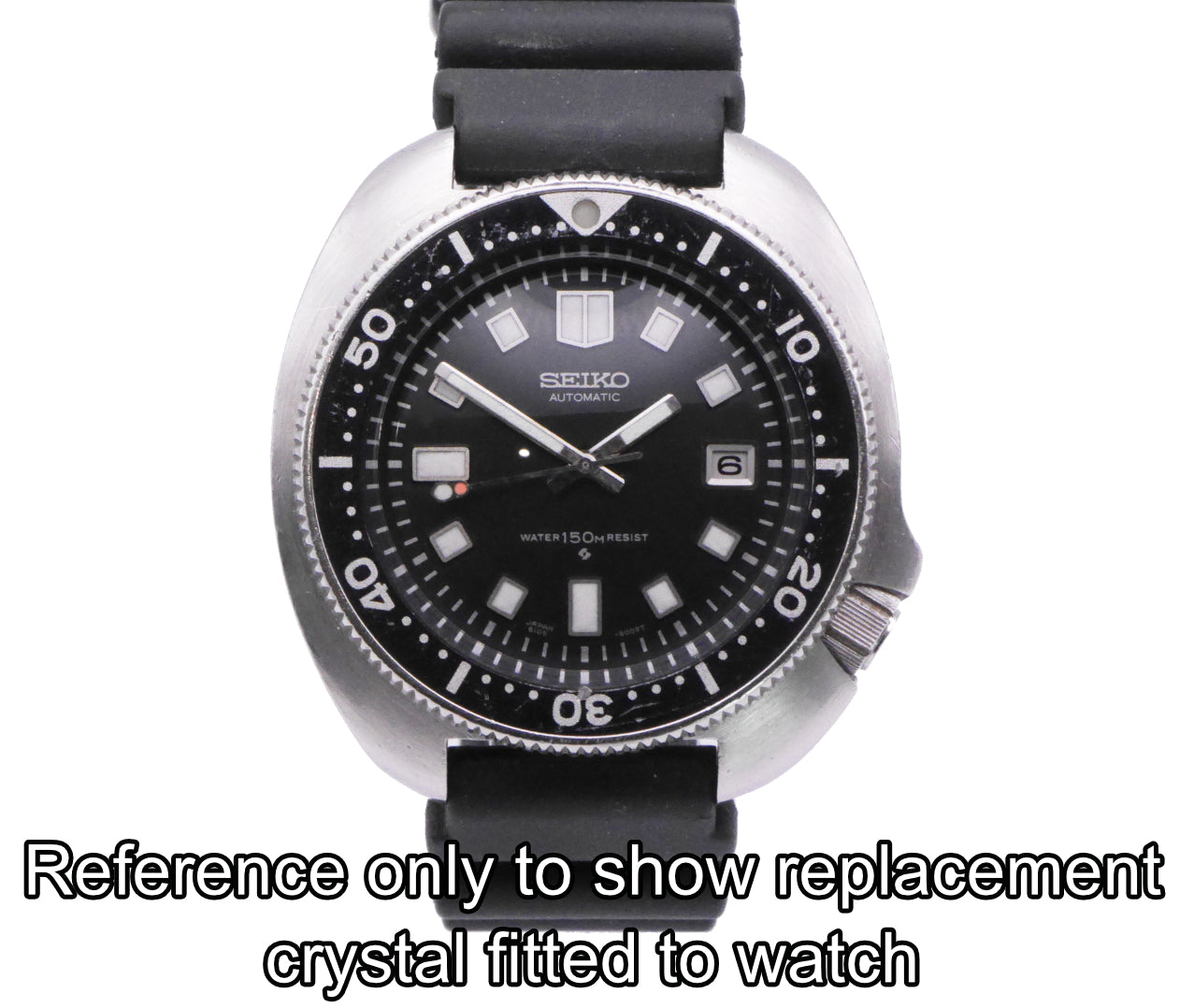

This listing is for the Type 3 crystal, which is a direct reproduction of that variation. If you're interested in the Type 4 crystal, it's also available in my store, with comparison photos included to highlight the differences when installed on the watch. Please note that the watch shown in the photos is not included and is for reference only.

Replacement Crystal Specifications:

• Outer Diameter: 32mm
• Material: Mineral Glass
• Top Surface: Domed top and inner surfaces
• Sealing Surface Finish: Frosted
• Chamfer/Bevel Finish: Polished

Compatible with the Following Models:

• 6105-8000, 6105-8009, 6105-8110, 6105-8119
• 6106-6057, 6106-6069, 6106-7119, 6106-7420, 6106-8237
• 6119-6020, 6119-6023, 6119-7173, 6119-7183, 6119-8120, 6119-8123
